Bollinger Squeeze Indicator MT4 is a powerful volatility and momentum tool that identifies period squeezes between Bollinger Bands and Keltner Channels while utilizing secondary momentum oscillators like CCI, Stochastic, or RSI to signal imminent directional price breakouts.
Market prices naturally alternate between two recurring cycles: low-volatility consolidation (squeezes) and high-volatility trend expansion (breakouts). Trading during flat, quiet range-bound periods often leads to choppy, unprofitable signals. However, identifying the exact moment when volatility transitions from a tight squeeze into an aggressive breakout offers incredible risk-to-reward opportunities.
The Bollinger Squeeze Indicator MT4 automates this process by combining John Bollinger’s volatility principles with momentum triggers into a streamlined sub-window oscillator. This tool enables forex traders to spot breakout setups early and enter positions precisely as market expansion begins.
What is the Bollinger Squeeze Indicator MT4?

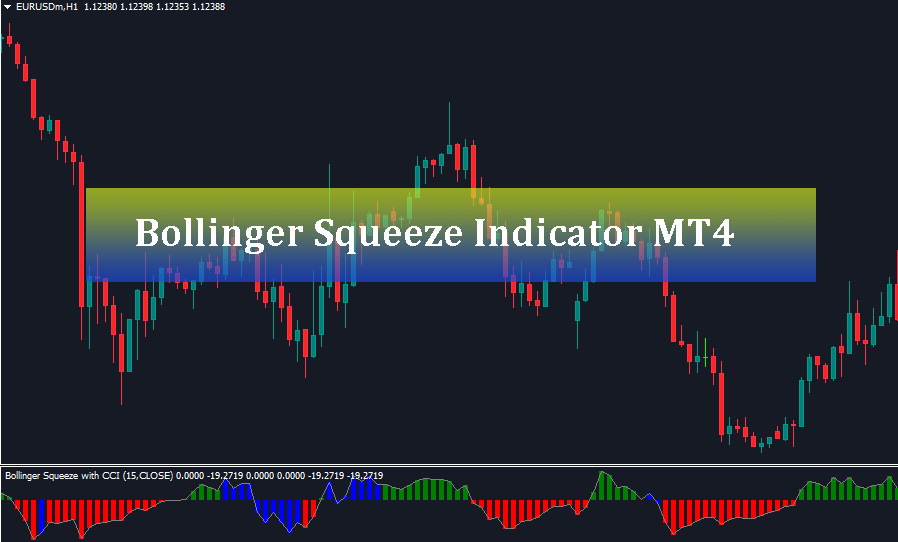

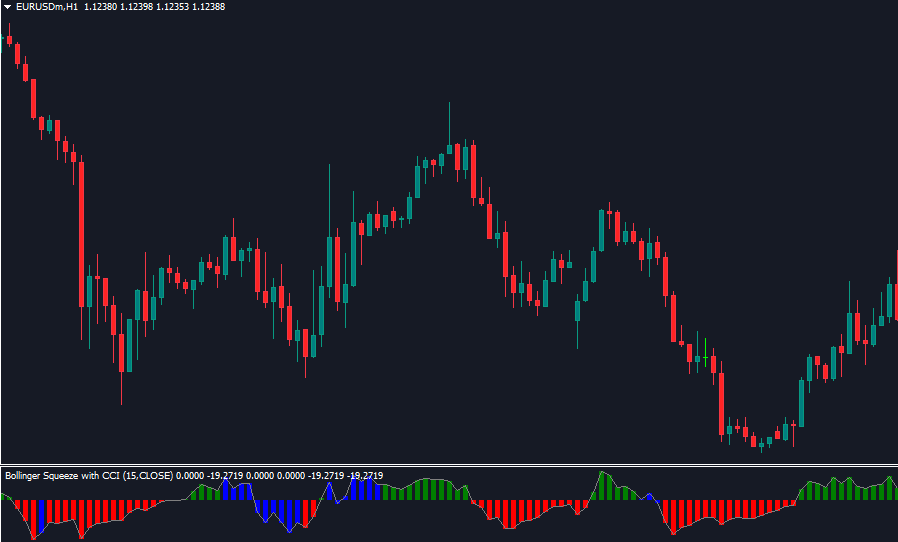

The Bollinger Squeeze Indicator MT4 is a specialized technical indicator developed for the MetaTrader 4 desktop terminal. It operates inside a dedicated sub-window below the main candlestick chart, displaying a dynamic, color-coded histogram alongside momentum dots. The core algorithm measures the relationship between Bollinger Bands and Keltner Channels: when Bollinger Bands contract inside the Keltner Channels, the market enters a “squeeze” state. Once the bands expand back outside the channels, the squeeze breaks, and the accompanying momentum histogram (powered by CCI, Stochastic, or RSI) confirms the direction of the explosive price move.
Key Features of Bollinger Squeeze Indicator MT4
1. Visual Squeeze and Breakout Detection: Automatically highlights market consolidation phases and signals active volatility expansion.
2. Multi-Oscillator Trigger Support: Features configurable trigger parameters (triggerType), allowing traders to switch between Stochastic, CCI, and RSI momentum algorithms.
3. Color-Coded Momentum Histogram: Uses green histogram bars for bullish momentum and red histogram bars for bearish momentum.
4. Consolidation Blue Warnings: Incorporates blue histogram bars to explicitly flag low-volatility squeeze conditions prior to a breakout.
5. Clean Sub-Window Interface: Keeps main price charts clean while rendering all technical data in an organized bottom panel.

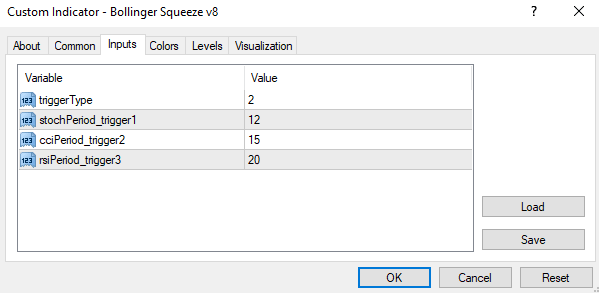

Understanding Indicator Settings and Inputs
– triggerType (Default: 2): Selects which momentum oscillator drives the histogram calculations (e.g., Type 1 = Stochastic, Type 2 = CCI, Type 3 = RSI).
– stochPeriod_trigger1 (Default: 12): Sets the calculation period length when using the Stochastic trigger.
– cciPeriod_trigger2 (Default: 15): Sets the lookback period length when operating with the CCI trigger (e.g., Bollinger Squeeze with CCI (15,CLOSE)).
– rsiPeriod_trigger3 (Default: 20): Sets the lookback period length when utilizing the RSI trigger.
Trading Strategies with Bollinger Squeeze Indicator MT4
1. Bullish Breakout Entry: Wait for the indicator to signal an active squeeze phase (blue bars/dots), then enter a long position as the histogram turns green and crosses above the zero axis with expanding height.
2. Bearish Breakout Entry: Identify a prolonged squeeze state, then enter a short trade when the histogram transitions to red and expands downwards below the zero baseline.
3. Squeeze Filter for Trend Trading: Avoid taking new trend trades while the blue squeeze bars are visible; wait for explicit momentum expansion (green or red bars) before placing orders.
Pros and Cons of Bollinger Squeeze Indicator MT4
Pros:
– Combines volatility contraction (Bollinger/Keltner) and momentum direction (CCI/Stoch/RSI) into one unified tool.
– Clear color-coded visual cues remove confusion during market transitions.
– Multi-trigger capability offers high adaptability for different market conditions.
Cons:
– False breakouts can occur during tight range-bound market environments with low trading volume.
– Requires patience to wait for full squeeze releases rather than entering mid-consolidation.
Conclusion
The Bollinger Squeeze Indicator MT4 is an exceptional analytical instrument for forex traders seeking high-probability volatility breakout opportunities. By combining Bollinger Band contraction logic with flexible momentum triggers, it eliminates guesswork and keeps you aligned with real market expansion.
